Technical Specifications:
Control Protocol: Art-Net, Kling-Net ,DMX
Art-Net/dmx Channels: 432/8

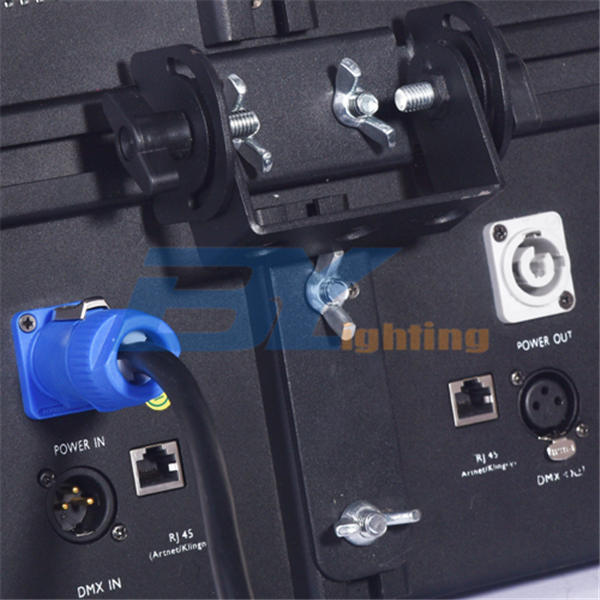

Data Connectors: 1 Ethernet (RJ45) or DMX cable
Light Source: 144 LEDs (tri-color RGB) SMD 5050,50,000 hours life expectancy
Pixels: 12 x 12
Pixel Pitch: 25 mm
Viewing Angle: 120°

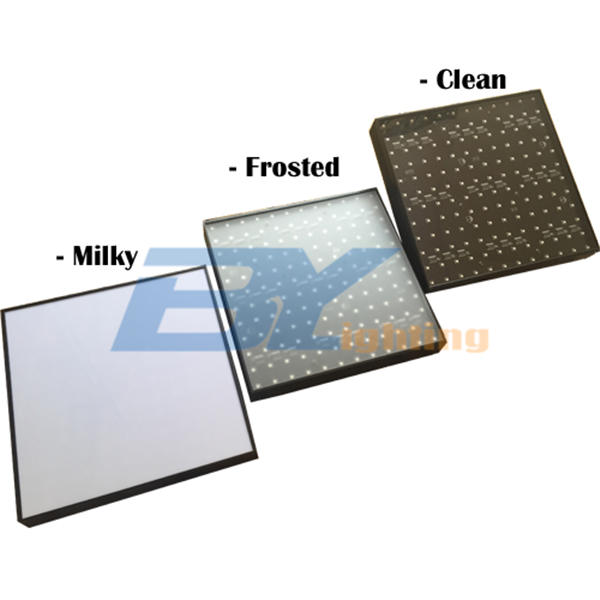

luminance(clear filter): 3,290 NITS
luminance(frosted filter): 2,900 NITS
IP Rating: IP20, dry location
Power and Current: 51 W, 0.36 A @ 120 V, 60 Hz
Power and Current: 57 W, 0.21 A @ 208 V, 60 Hz
Power and Current: 63 W, 0.18 A @ 230 V, 50 Hz
Weight: 5.6 lb (2.5 kg)
Dimensions: 11.8 x 11.8 x 4.6 in (300 x 300 x 117 mm)
Housing Material: Aluminum alloy
