BY-C1330/C1331 MA2 OnPC Command Wing+Fader Wing
Category: DMX CONTROLLER
Publish Time: 2016-07-06 19:11

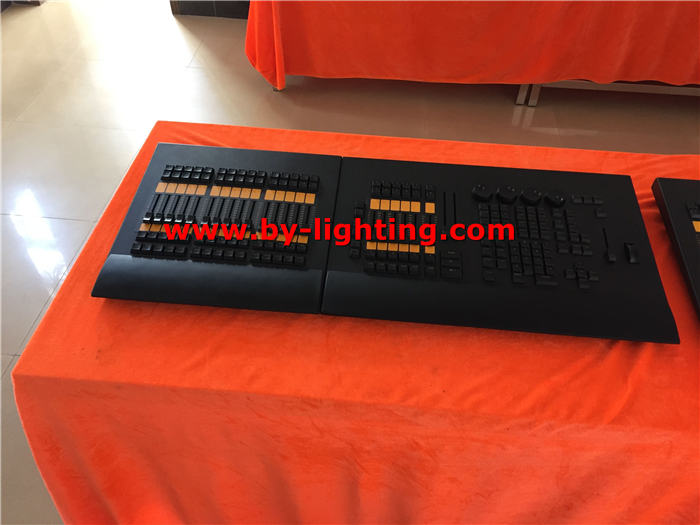

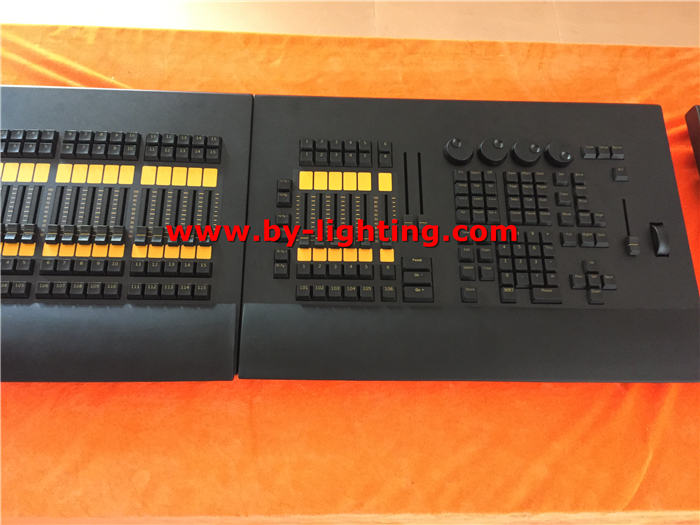

BY-C1330 MA2 OnPC Command Wing // BY-C1331 Fader Wing
Specifications

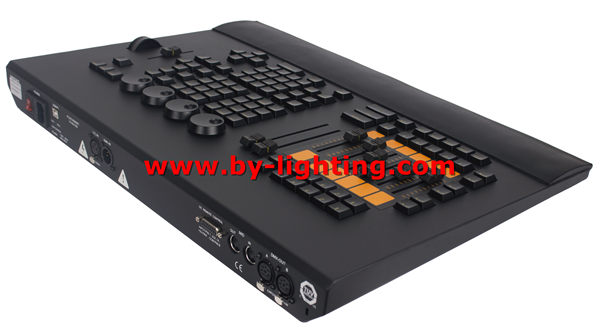

Command Wing
*Real-time control 2048 parameters (can backup up to 65,536 parameters of MA system )
*6 executive faders (length 60mm), 18 executive fader buttons, 2 A/B switch faders (length 100mm), 6 executive buttons, 6 page buttons (channel / fader / button), 4 encoder.
* 2048 parameters, up to 4096 parameters
* 2 DMX output, 1DMX input (XLR 5-pin)
* 1 Brightness rollers - Dimmer Midi in /out (Midi-Timecode / Midi-Note) connector.
* With separate backlight and dimmable Silent button.
* Remote analog signal input connector.
* XLR 3-pin LTC (Linear Time Code) connector.
* Kensington security lock slot.
* USB 2.0 connector.
* Integrated or universal power supply
* Lightweight, portable and solid. Net weight only 6KG, can be moved easily.

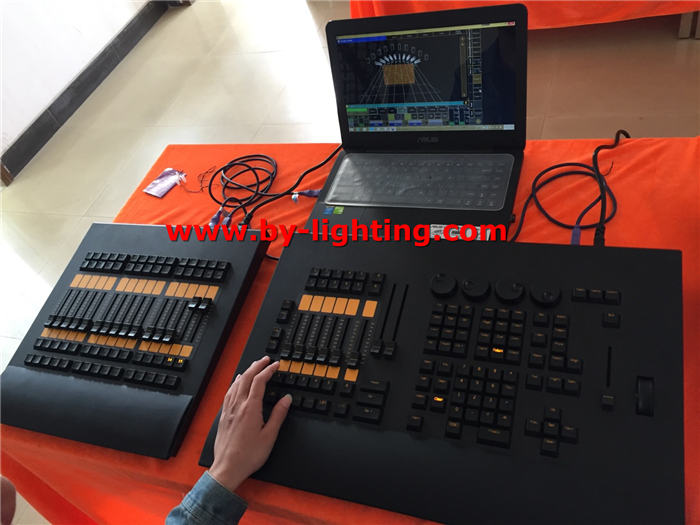

* Commands buttons layout is similar to the grandMA2;just connect to the PC, it can be easily to control.
* MA portable lighting console (MA onPC command wing).
*G.W:14Kg

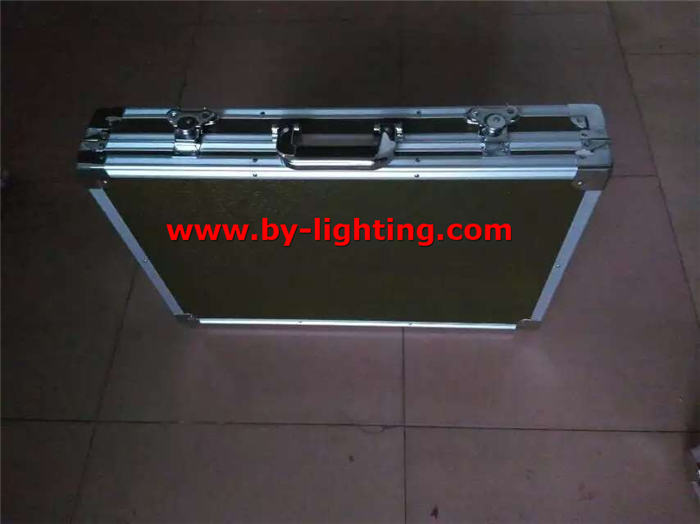

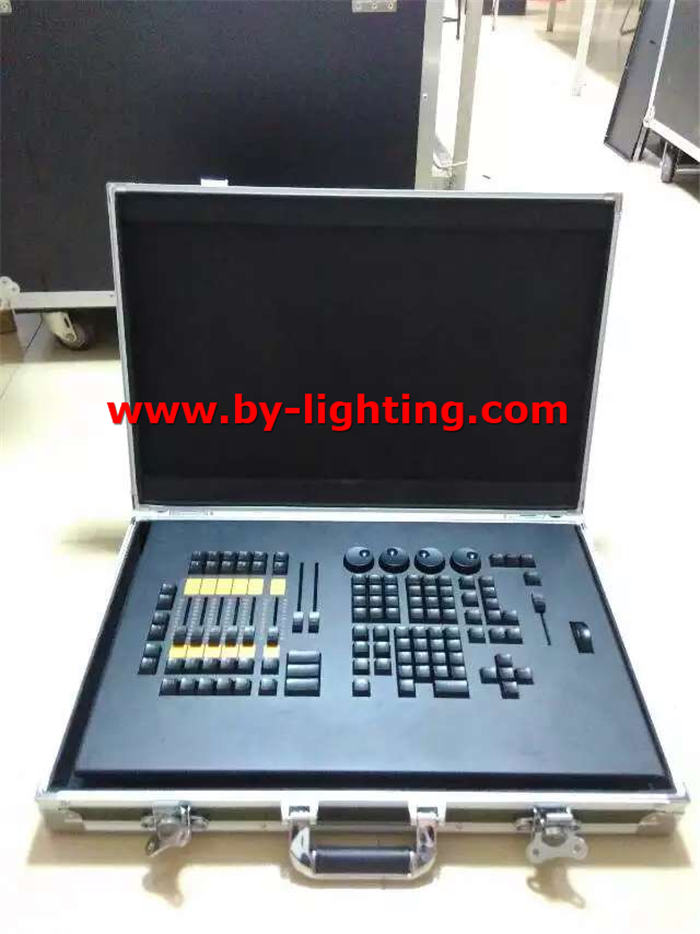

*Packing size by flight case: 54 x 40 x 7CM
Fader Wing
* 2048 can be controlled in Real-time parameters
* Parameters can be expanded to to 4096 four DMX outputs 15 executor faders(length 60mm)
* 45 executive button, 15 pusher buttons 6 page buttons (channel / fader / button)
* USB 2.0 interface
* 100-240V AC power supply
* Silent type keys with separate backlight and dimmable button.
* Lightweight, portable and robust. Net weight only 4.5Kg, can be moved easily.
* Just connect to the PC, you can use same as controller fader.
* Size by flight case: 37 x 40 x 7CM
* G.W: 9Kg
Command Wing
*Real-time control 2048 parameters (can backup up to 65,536 parameters of MA system )
*6 executive faders (length 60mm), 18 executive fader buttons, 2 A/B switch faders (length 100mm), 6 executive buttons, 6 page buttons (channel / fader / button), 4 encoder.
* 2048 parameters, up to 4096 parameters
* 2 DMX output, 1DMX input (XLR 5-pin)
* 1 Brightness rollers - Dimmer Midi in /out (Midi-Timecode / Midi-Note) connector.
* With separate backlight and dimmable Silent button.
* Remote analog signal input connector.
* XLR 3-pin LTC (Linear Time Code) connector.
* Kensington security lock slot.
* USB 2.0 connector.
* Integrated or universal power supply
* Lightweight, portable and solid. Net weight only 6KG, can be moved easily.
* Commands buttons layout is similar to the grandMA2;just connect to the PC, it can be easily to control.
* MA portable lighting console (MA onPC command wing).
*G.W:14Kg
*Packing size by flight case: 54 x 40 x 7CM
Fader Wing
* 2048 can be controlled in Real-time parameters
* Parameters can be expanded to to 4096 four DMX outputs 15 executor faders(length 60mm)
* 45 executive button, 15 pusher buttons 6 page buttons (channel / fader / button)
* USB 2.0 interface
* 100-240V AC power supply
* Silent type keys with separate backlight and dimmable button.
* Lightweight, portable and robust. Net weight only 4.5Kg, can be moved easily.
* Just connect to the PC, you can use same as controller fader.
* Size by flight case: 37 x 40 x 7CM
* G.W: 9Kg
