Technical Specifications
Voltage: AC100V-240V, 50/60HZ.
Lamp: OSRAM 7R 230/YODN 7R 230
Channel mode: 16/20CH.
Pan: 540 °
Tilt: 250 °
Pan/Tilt Resolution: 16 bit
electronic error correction
Color Wheel 1: 14 colors+ open, with rotating rainbow effect
Color Wheel 2: mini color wheel with 8 colors

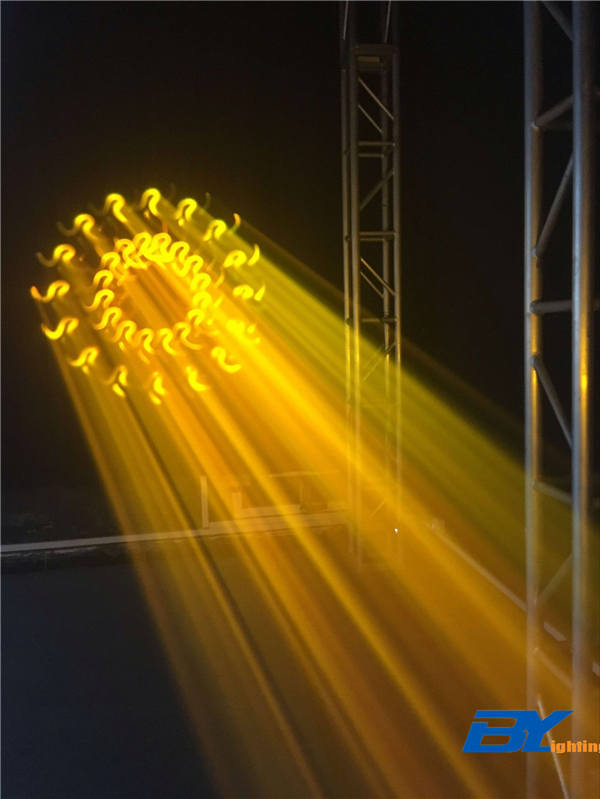

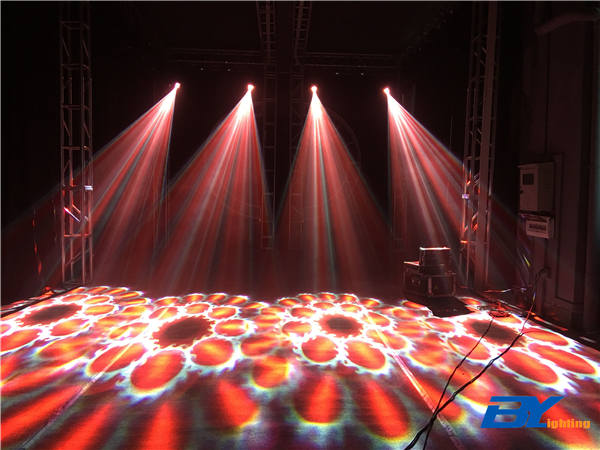

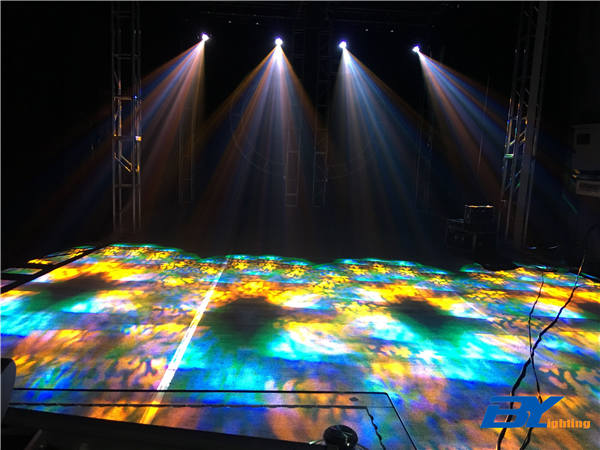

Gobo Wheel: 17 fixed gobos +open,with rotating gradually change effect and pattern swing effect.
Strobe: up to 13 times per second with automatic pulse effect.
Dimmer: 0-100% linear dimmer.
Focus: electronic

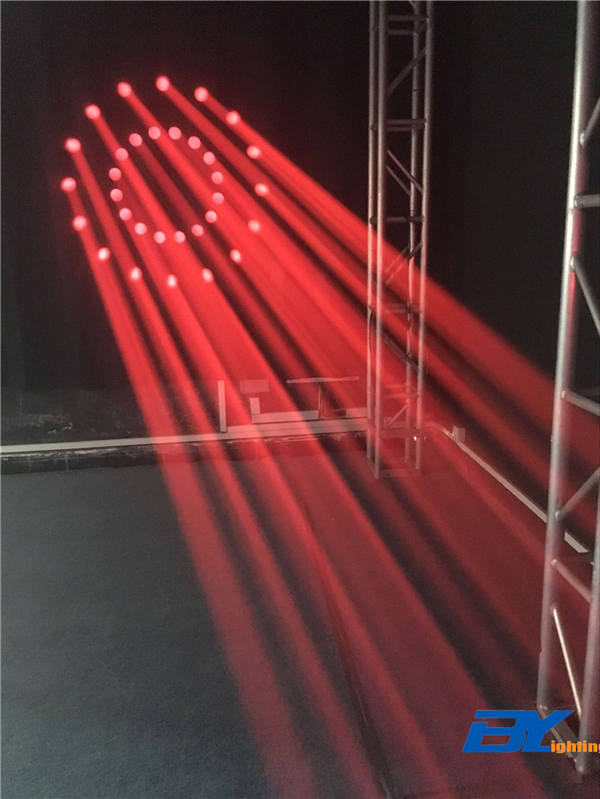

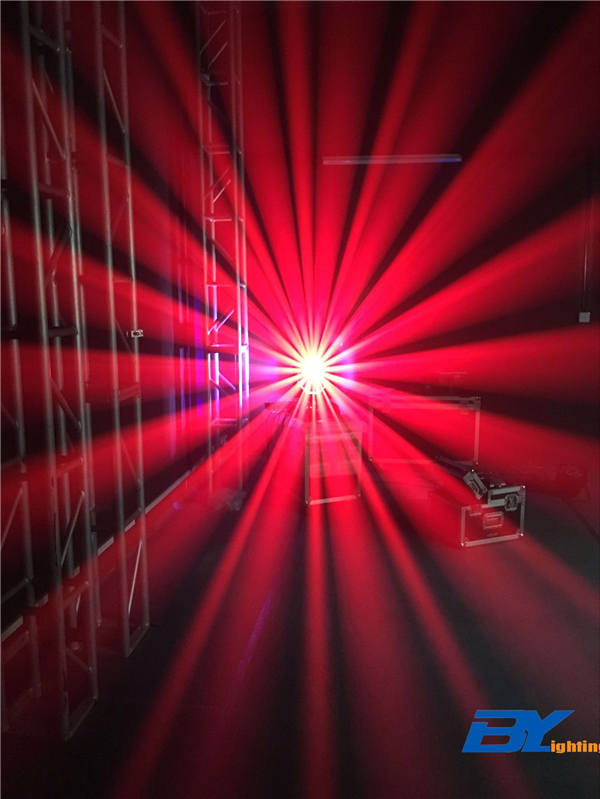

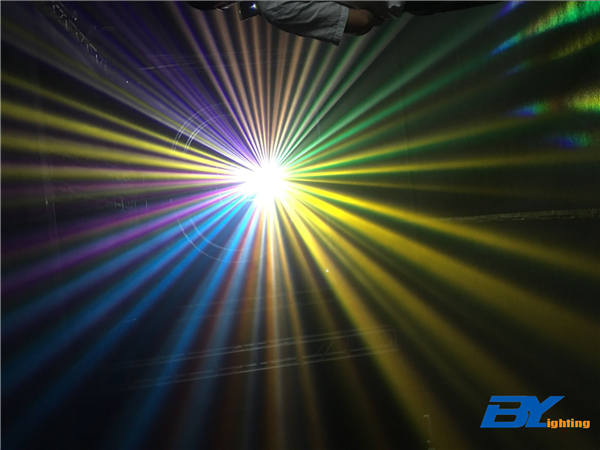

Prism: 24 or 32 rotation prism + double-deck prism(8 prism+16 prism)
Frost Filter
Function reset from the lighting desk
ON/OFF lamp control from the lighting desk
Display:Color screen/Touch screen optional
Size: 360X410X500mm
Weight: 17KG
