FEATURES

Channel mode:DMX-512, 16CH

Color wheel:8 colors+white，split colors，rainbow effect

Rotated gobo wheel :7 rotated gobos+white,Rainbow effect,gobo shake

Fixed gobo wheel:8 fixed gobos+white,rainbow effect,gobo shake

Effect wheel 1:zoom(with zoom lens)+frost effect

Effect wheel 2:4 facet prism

（adjustable rotating speed and direction）

Strobe:0-20Hz/s

Dimmer:Variable electronic dimmer(0-100%)

Focus:Variable motorized focus

Control mode:DMX512,Sound,Master/Slave,Auto

Pan:540°/360°/180°，

8/16 bit movement resolution,automatic correction

Tilt:270°/180°/90°，

8/16 bit movement resolution,automatic correction

Integrated three features:beam,spot and wash

CONSTRUCTION

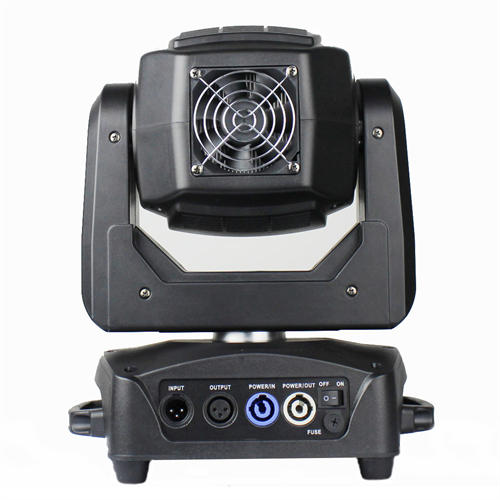

Data in/out:3-pin XLR connector IN/OUT

Power in/out:PowerCon IN/OUT

SPECIFICATIONS

Power supply:AC 100V-240V 60/50Hz

Power consumption：225W

Light source:150W white LED

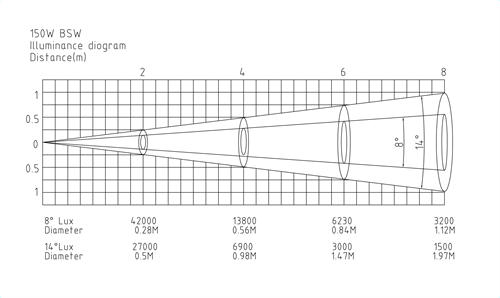

Beam angle：2°-3° / 5°-6° / 8°-14°(with zoom lens)

Spot angle：8°-14°(with zoom lens)

Wash angle：8°-20°(with zoom lens)

N.W:9.8kg

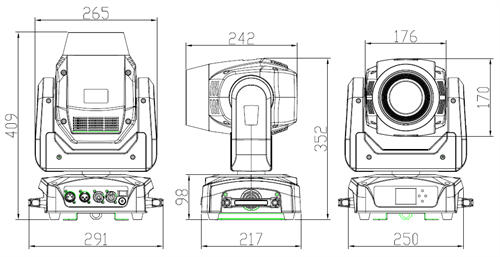

Product meas:291*217*409mm
